Market simulation

The purpose of this tutorial is to show a more in-depth guide on how to simulate a market using Garpar, along with all the available tweaks for the process.

Currently, the system supports market simulation using one of the following distributions: normal, uniform, or Lévy stable. We will use the normal distribution for this tutorial.

We can run our first simulation by doing the following:

from garpar.datasets.risso import make_risso_normal

make_risso_normal()

Stocks	S0[W 1.0, H 0.5]	S1[W 1.0, H 0.5]	S2[W 1.0, H 0.5]	S3[W 1.0, H 0.5]	S4[W 1.0, H 0.5]	S5[W 1.0, H 0.5]	S6[W 1.0, H 0.5]	S7[W 1.0, H 0.5]	S8[W 1.0, H 0.5]	S9[W 1.0, H 0.5]
Days
0	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000
1	99.217459	101.011179	99.051546	100.939962	99.027175	100.674693	101.057617	99.107305	100.552594	101.057419
2	98.175032	99.714135	99.801658	101.887271	99.462664	101.759334	100.195162	97.976316	101.542128	102.223276
3	97.100092	98.461286	100.567572	102.884586	98.575600	100.882997	99.288656	97.183166	102.520327	100.957083
4	97.943529	99.635107	99.716944	101.733750	97.965693	99.743022	97.926802	98.152265	101.775098	99.926287
...	...	...	...	...	...	...	...	...	...	...
361	77.011462	107.790311	102.358754	75.009370	86.030695	99.154258	108.431197	101.740880	168.732165	135.961668
362	77.677567	108.842242	101.299433	75.597476	85.052443	99.891277	109.497674	102.730757	167.391853	137.225215
363	76.968017	109.897206	102.178140	74.798019	84.301589	99.021719	108.480965	104.087446	169.255572	136.123678
364	76.338357	111.396875	103.043883	75.654148	83.612694	98.106395	107.582160	105.030917	167.362275	134.653284
365	77.132471	112.222480	103.973727	74.924523	84.618482	99.181151	106.541846	106.398680	168.841089	133.593830

366 days x 10 stocks - W.Size 5

By default, the simulation generates 10 stocks with 365 days of prices for each one. These prices follow the same distribution.

For this tutorial, we will focus on three sections of the StocksSet:

1. Entropy (H): Located in the top section, representing the entropy of the prices of each stock. By default, this value is 0.5.

2. Stock Prices: The section that displays the value of each stock for each day.

3. Market Data: Found at the bottom, this section includes:

   • Total days

   • Number of stocks

   • Window size (we will explain its significance as we progress).

Parameters of a Simulation

There are several parameters that influence a simulation. This section will demonstrate how each parameter affects the results.

Let’s start with a simple example. Suppose we want to simulate 5 stocks over 10 days, each starting at a price of 110. This can be achieved with the following function call:

make_risso_normal(days=10, stocks=5, price=110)

Stocks	S0[W 1.0, H 0.5]	S1[W 1.0, H 0.5]	S2[W 1.0, H 0.5]	S3[W 1.0, H 0.5]	S4[W 1.0, H 0.5]
Days
0	110.000000	110.000000	110.000000	110.000000	110.000000
1	109.100791	110.985320	108.592367	110.751179	111.111873
2	110.081776	109.794453	107.904694	112.181642	111.891958
3	111.101074	110.902450	108.837916	113.198713	110.238611
4	109.861787	112.095493	107.662382	114.604822	111.213248
5	108.765900	111.473659	108.702145	113.678955	112.281496
6	108.036743	112.605383	107.578590	114.698660	111.473552
7	109.277220	113.624004	106.613202	116.054480	110.283692
8	108.131517	114.565859	105.687997	117.402401	111.530358
9	107.039655	115.685478	104.677679	116.326258	110.528993
10	106.211737	116.839084	105.957010	117.293314	111.529207

11 days x 5 stocks - W.Size 5

Sometimes, we might want a more ‘controlled’ or even deterministic environment. We can achieve this by using a seed. The random_state parameter represents this seed, as shown in the following example:

make_risso_normal(days=10, stocks=5, random_state=42)

Stocks	S0[W 1.0, H 0.5]	S1[W 1.0, H 0.5]	S2[W 1.0, H 0.5]	S3[W 1.0, H 0.5]	S4[W 1.0, H 0.5]
Days
0	100.000000	100.000000	100.000000	100.000000	100.000000
1	98.805864	100.935769	99.326480	100.900464	100.649803
2	99.723073	99.709073	98.300671	99.884634	101.809271
3	100.481068	98.845525	99.570943	98.878556	100.721910
4	99.870674	97.846148	100.461281	99.783308	99.528206
5	101.124337	96.897283	101.310699	98.637364	100.581171
6	102.006936	95.770467	100.074504	99.746865	101.208367
7	103.332098	94.844957	101.280570	100.450735	100.356336
8	104.518001	94.306958	102.217987	99.473017	101.303750
9	105.458859	93.176509	100.824345	100.715559	100.136298
10	106.641517	92.403867	101.862962	99.497536	99.235579

11 days x 5 stocks - W.Size 5

Feel free to try this with different values of random_state.

Now, let’s talk about the H value. This represents the entropy of a given stock, which can be thought of as the informational efficiency of the market. In simple terms, it describes how quickly information spreads throughout the market. Entropy is essentially a measure of unpredictability. When the entropy value is closer to 1.0, it means that the chances of winning or losing on any given day are nearly equal—making the stock’s movements highly unpredictable. On the other hand, when entropy is closer to 0.0, it suggests that the chances of winning or losing are imbalanced, meaning the stock’s behavior is more predictable or skewed in one direction.

To test this, lets try using a high entropy value and a low entropy value. This will show how this concept is visualized:

make_risso_normal(stocks=1, entropy=1.0, random_state=702).plot.line(
    palette="flare"
)
make_risso_normal(stocks=1, entropy=0.0, random_state=702).plot.line(
    palette="viridis"
)

<Axes: title={'center': 'Price'}, xlabel='Days'>

We can see that the stock following the red line doesn’t show a clear, sustained trend of either dropping or rising, while the one with the teal color tends to drop over time.

Note that we used a method line to create the graph, the attribute plot is known as an accessor and we will explain them in one of the lasts sections of this tutorial.

Another important parameter is the window_size, which represents how long an investor will hold a stock. By default, we’ve set it to 5 days. This value is combined with the entropy to determine the loss probability each day. So for example, lets assume the same entropy value and see how the stocks values diverge:

make_risso_normal(
    stocks=1, entropy=0.5, window_size=5, random_state=702
).plot.line(palette="flare")
make_risso_normal(
    stocks=1, entropy=0.5, window_size=7, random_state=702
).plot.line(palette="viridis")

<Axes: title={'center': 'Price'}, xlabel='Days'>

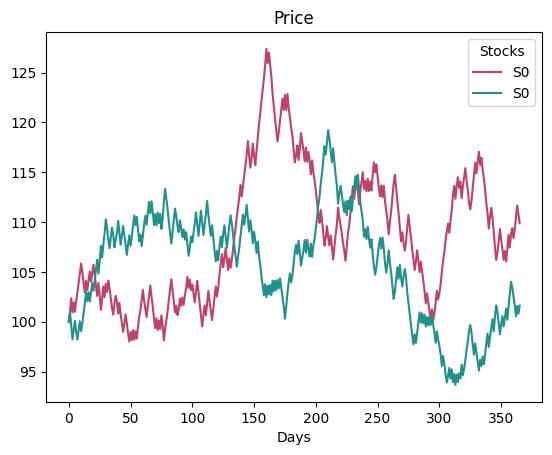

As we can see, the simulation produces different results based on the window_size.

We’ve also included some validations. For example, if we try to simulate a market with fewer days than the window_size, the simulation will fail. In such cases, we issue a warning to inform the user about what’s happening:

make_risso_normal(days=10, stocks=4, random_state=42, window_size=20)

---------------------------------------------------------------------------
ValueError                                Traceback (most recent call last)
Cell In[6], line 1
----> 1 make_risso_normal(days=10, stocks=4, random_state=42, window_size=20)

File ~/checkouts/readthedocs.org/user_builds/garpar/envs/latest/lib/python3.12/site-packages/garpar/datasets/risso.py:384, in make_risso_normal(mu, sigma, entropy, random_state, n_jobs, verbose, **kwargs)
    344 """Create a StocksSet instance using RissoNormal maker.
    345
    346 This function is intended to create a StocksSet instance using the
   (...)    373     Generated stocks set instance.
    374 """
    375 maker = RissoNormal(
    376     mu=mu,
    377     sigma=sigma,
   (...)    381     verbose=verbose,
    382 )
--> 384 return maker.make_stocks_set(**kwargs)

File ~/checkouts/readthedocs.org/user_builds/garpar/envs/latest/lib/python3.12/site-packages/garpar/datasets/ds_base.py:349, in RandomEntropyStocksSetMakerABC.make_stocks_set(self, window_size, days, stocks, price, weights)
    326 """Create a StocksSet instance with random prices.
    327
    328 Parameters
   (...)    346
    347 """
    348 if window_size <= 0 or window_size > days:
--> 349     raise ValueError("'window_size' must be in the interval (0, days]")
    351 initial_prices = self._coerce_price(stocks, price)
    353 loss_probability = self.get_window_loss_probability(
    354     window_size, self.entropy
    355 )

ValueError: 'window_size' must be in the interval (0, days]

As we mentioned, there are other distributions that a market prices follow. Feel free to test them. In the current version we have the functions make_risso_unifom and make_risso_levy_stable appart from the make_risso_normal shown in the previous steps.

There are other parameters that can be used in a simulation, such as n_jobs, which represents the number of concurrent ‘workers’ used for the simulation, or the verbose parameter, which, when set to 1, shows details of such ‘workers’.

Combining simulations

We can use the make_multisector function to run the simulation with different distribution or simulation values at the same time. For example, if we want to see how the prices change with a particular seed and the three distributions, we can do something like the following:

from garpar.datasets import (
    RissoUniform,
    RissoNormal,
    RissoLevyStable,
    make_multisector,
)

make_multisector(
    RissoNormal(random_state=42),
    RissoUniform(random_state=42),
    RissoLevyStable(random_state=42),
    days=10,
    stocks=3,
)

Stocks	rissonormal_S0[W 1.0, H 0.5]	rissouniform_S0[W 1.0, H 0.5]	rissolevystable_S0[W 1.0, H 0.5]
Days
0	100.000000	100.000000	100.000000
1	98.805864	97.632493	99.783564
2	99.723073	101.690331	100.449422
3	100.481068	105.711307	101.042132
4	99.870674	100.473104	100.711882
5	101.124337	104.818773	102.554182
6	102.006936	108.857429	103.839387
7	103.332098	114.204546	104.271329
8	104.518001	118.185062	106.170553
9	105.458859	120.886469	106.377469
10	106.641517	122.287369	106.493258

11 days x 3 stocks - W.Size 5

The classes RissoUniform, RissoNormal and RissoLevyStable are known as makers in our system. Objects of these classes are in charge of creating StocksSet, the difference between each one is the distribution a generated StocksSet prices follow.

The accessors

The accessors are properties that allow an object to be treated as a particular tipe. When we introduce the entropy value, we utilized the property plot, this property had an interface inside to make different plots of the StocksSet. We used only the line plot, but if we want to make a boxplot; we will simply make something like this:

make_risso_normal(
    stocks=1, entropy=0.5, window_size=7, random_state=702
).plot.box(palette="viridis")

<Axes: title={'center': 'Price'}, xlabel='Stocks'>

There are many other accessors. Feel free to look for the Core subpackage in the API section, where we published every function prototype alongside its documentation!

Now that you know how the simulation works, we recommend you to follow this tutorial.
